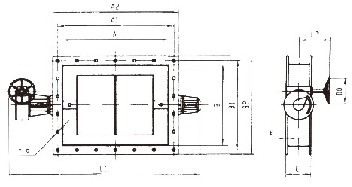

Manual air flow control valve Rectangle FD341 H/W/X-1C (Rectangle)

Main function
Widely used in metallurgy, mining, building materials, chemical and other industries Pipe thermal medium flow control, accurate to the flow of large, small adjustment and cut off.
Feature
The valve of high quality steel plate welding. Weight with light, Stiffness is good, compact structure, temperature, corrosion, wear, large diameter, small leakage rate of Feature. Sealed Material of stainless steel (H), rubber (X), BodyMaterial (W) three kinds
Performance parameter
Working pressure
|
0.1MPa
|
Suitable temperature
|
≤350 οC
|
Flow rate
|
≤28m/s
|
Suitable medium
|
Gas, air, dust, gas, High temperature gas
|
|
