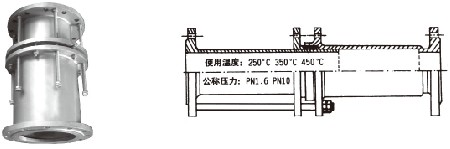

CSHeat Pipe Compensator

Applied range:
Products for the transportation temperature is not higher than 450 degrees of steam and hot Water pipeline
No.
|
Name
|
Amount
|
|
1
|
Stretching body
|
1
|
0235,Stainless steel
|
2
|
Platen
|
1
|
Q235,Stainless steel
|
3
|
Stretching cover
|
1
|
0235,Stainless steel
|
4
|
Sealing ring
|
1
|
Fluorine rubber, graphite disk root
|
5
|
Bolt
|
N
|
Q 235A, 35,Stainless steel
|
6
|
Nut
|
N
|
Q235,Stainless steel
|
7
|
Outer layer
|
1
|
Thermal power paint spraying
|
|
